Frequency Range

Freq.

90

200.000

MHz

Standard Frequency

Freq.

100.000 ,106.250 ,125.000

148.500 ,150.000 ,155.520 156.250,200.000

MHz

Contact SCTF for frequencies not listed

Output

LVPECL

Operating Temperature

T_use

-20

+70

℃

-40

+85

℃

Storage Temperature Range

T_stg

-55

+125

℃

Supply Voltage

Vdd

1.8,2.5 , 3.3

V

±5% max.

Output Load

L_PECL

50

Ω

Vdd - 2.0 V

Current Consumption

Icc

50

mA

Duty Cycle

SYM

45

55

%

Rise / Fall Time

TR / TF

1

nS

20% Vdd to 80% Level

Start-up Time

T_str

10

mS

To 90% of Final Amplitude

High output voltage

VOH

Vdd-1.025

V

Low output voltage

VOL

Vdd-1.62

V

Enable Voltage High (Logic 1)

VIH

0.7Vdd

V

Pin 1 Tri-state

Outputs will be enable if OE is Logic 1 or open;

Outputs will be disable if OE is Logic 0.

Enable Voltage Low (Logic 0)

VIL

0.3Vdd

V

RMS Phase Jitter

TRPJ

1.5

pSec

Period Jitter(12KHz-20MHz)

Phase Noise@156.25MHz

100 Hz

-80

dBc/Hz

1 KHz

-100

dBc/Hz

10 KHz

-120

dBc/Hz

Aging

f_age

±3

ppm

1st. Year at 25℃

±20ppm

±25ppm

±30ppm

±50ppm

-20℃ to +70℃

▲

★

★

★

-40℃ to +85℃

▲

★

★

★：Available    ▲：Conditional

All condition*：Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change.

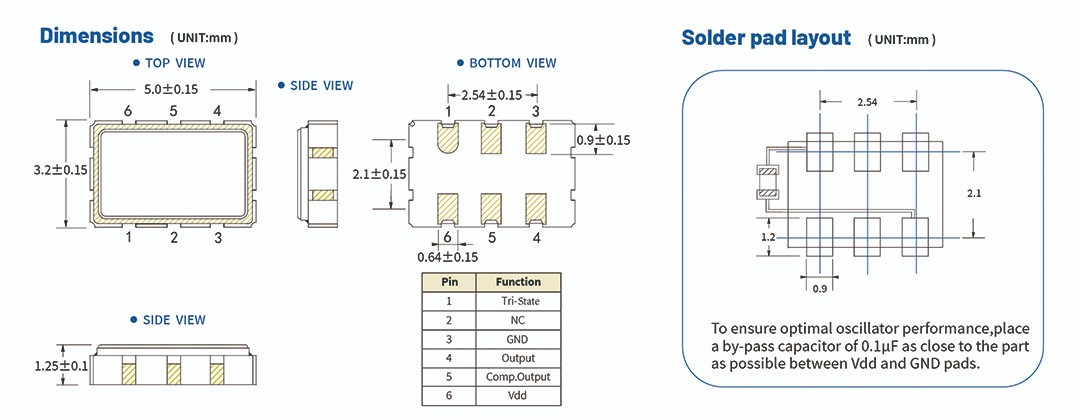

選擇需要的封裝規(guī)格及產(chǎn)品系列：   5.0×3.2mm；5ZQ Series

選擇需要的頻率：    200.000MHz

選擇需要的工作電壓：   3.3V

選擇需要的輸出模式：  LVPECL

選擇需要的頻率精度（at 25℃）：   ±20ppm

選擇需要的工作溫度范圍：    -40℃~+85℃

選擇需要的頻率&溫度特性：  ±30ppm

您需要的產(chǎn)品是： 5ZQ Series 200.000MHz 3.3V LVPECL ±20ppm@25℃ ±30ppm@-40~+85℃
