Frequency Range

Freq.

2.048

54.000

MHz

Operating Temperature

T_use

-20

+70

℃

-40

+85

℃

Storage Temperature Range

T_stg

-55

+125

℃

Supply Voltage

Vdd

2.97

3.3

3.63

V

Output Load

L_CMOS

15

pF

Current Consumption

Icc

10

mA

2.048MHz ≤ Freq. ＜36MHz

15

mA

36MHz ≤ Freq.  ≤54MHz

Absolute Pull Range

APR

±50

ppm

Center Voltage

Vcont

1.65

V

Control Voltage Range

Vc

0.3

3.0

V

Linearity

L

10

%

Modulation Band Width

MBW

15

KHz

VC Input Impedance

Rin

5

MΩ

Duty Cycle

SYM

45

55

%

50 % Vdd level, L_CMOS ≤ 15 pF

High output voltage

VOH

0.9Vdd

V

Low output voltage

VOL

0.1Vdd

V

Enable Voltage High (Logic 1)

VIH

0.7Vdd

V

Output will be disable if OE is Logic 0

Output will be enable if OE is Logic 1 or open

Enable Voltage Low (Logic 0)

VIL

0.3Vdd

V

Rise / Fall Time

TR / TF

5

nS

10% Vdd to 90% Level

Start-up Time

T_str

2

mS

To 90% of Final Amplitude

Aging

f_age

±3

ppm

1st. Year at 25℃

±25ppm

±50ppm

-20℃ to +70℃

★

★

-40℃ to +85℃

▲

★

★：Available    ▲：Conditional

All condition*：Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change.

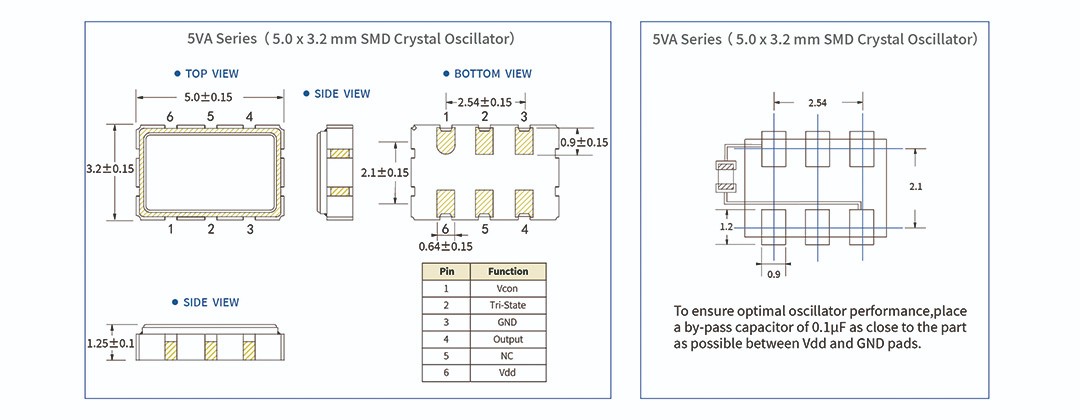

選擇需要的封裝規(guī)格、腳位及產(chǎn)品系列：   5.0×3.2mm；6pad；5VA Series

選擇需要的頻率：    24.000MHz

選擇需要的工作電壓：   3.3V

選擇需要的頻率精度（at 25℃）：   ±20ppm

選擇需要的工作溫度范圍：    -40℃~+85℃

選擇需要的頻率&溫度特性：  ±30ppm

您需要的產(chǎn)品是： 5VA Series 24.000MHz 3.3V ±20ppm@25℃ ±30ppm@-40~+85℃
